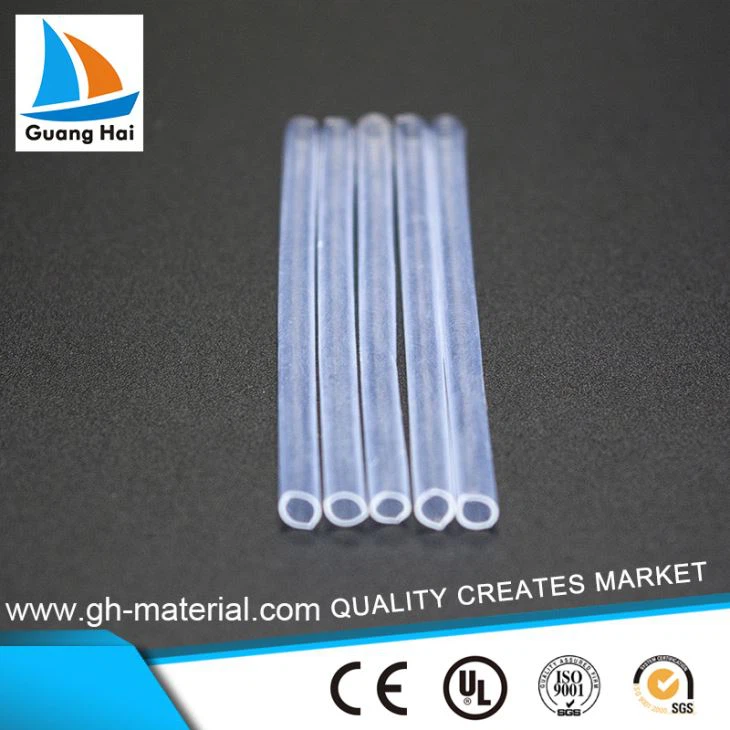

Thaum Tshav Kub Kub Shrinking Hose PTFE Tubing
Technical parameter
| Khoom Hom | Kub tshauv tub raj |
| Khoom siv | Teflon |
| Tig nplaim qab | VW-1 |
| Cov Kub Ua Haujlwm | -70 ℃ -200 ℃ |
| Withstand Voltage | 600V |
| Ntev | Kho |
| Ntsws piv | 4: 1 |
| Ua haujlwm siab (ntawm chav sov) | 10-15KG |
| Nrawm zog | 5KV / hli |
| Pab | Khoom siv kho mob, Khoom siv hauv tsev, Motors |
| Qhov chaw ntawm Keeb Kwm | Guangdong, Suav teb (Mainland) |
Taw qhia
PTFE Teflon Hose, luv luv rau polyethylene tubing, yog ua los ntawm polyethylene resin los ntawm kev tshwj xeeb rhuav thiab lub nplhaib txheej txheem.Qhov khoom no yog hluav taws xob insulating, heev nplaim retardant, self-lubricating thiab co resistant super kub, tshuaj reagents thiab yuav luag txhua cov roj thiab lwm yam tshuaj. Chemically inert, resistant kom yuav luag txhua yam tshuaj
Tsis tshua muaj kev sib txhuam coefficient, nyiaj siab tiv thaiv.Qhov hluav taws xob yam ntxwv
Zoo:
1.Xav kom muaj zog acid thiab alkali.
2. Kev laus laus tuaj yeem siv sab nraum zoov ntev ntev
Xav Paub Cov Ntxhais
| Teflon Heat Shrink Tubing Specification | |||
| Tus Qauv Txiav (hli) | Sab Hauv Hniav Ua Ntom Ntsis (hli) | Nruab Nrab Thickness (hli) | Sab Hauv Ntauv Tom Qab Ntsws (hli) |
| Φ0.5 | ± 0.2 | 0.10 ± 0.05 | ≤0.4 |
| Φ0.8 | ± 0.2 | 0.10 ± 0.05 | ≤0.47 |
| Φ1.0 | ± 0.2 | 0.10 ± 0.05 | ≤0.66 |
| Φ2.0 | ± 0.2 | 0.10 ± 0.05 | ≤0.97 |
| Φ2.5 | ± 0.2 | 0.10 ± 0.05 | ≤1.32 |
| Φ3.0 | ± 0.2 | 0.13 ± 0.05 | ≤1.65 |
| Φ3.5 | ± 0.2 | 0.13 ± 0.05 | ≤1.83 |
| Φ4.0 | ± 0.3 | 0.13 ± 0.05 | ≤2.57 |
| Φ4.5 | ± 0.3 | 0.13 ± 0.05 | ≤3.1 |
| Φ5.0 | ± 0.3 | 0.13 ± 0.05 | ≤3.4 |
| Φ6.0 | ± 0.3 | 0.13 ± 0.05 | ≤3.8 |
| Φ6.5 | ± 0.3 | 0.13 ± 0.05 | ≤4.1 |
| Φ7.0 | ± 0.3 | 0.13 ± 0.05 | ≤4.2 |
| Φ7.5 | ± 0.3 | 0.18 ± 0.05 | ≤4.5 |
| Φ8.0 | ± 0.3 | 0.18 ± 0.05 | ≤4.8 |
| Φ8.5 | ± 0.3 | 0.18 ± 0.05 | ≤5.2 |
| Φ 9.0 | ± 0.3 | 0.18 ± 0.05 | ≤5.3 |
| Φ 9.5 | ± 0.3 | 0.18 ± 0.05 | ≤5.6 |
| Φ10,0 | ± 0.3 | 0.18 ± 0.05 | ≤6.2 |
| Φ10.5 | ± 0.3 | 0.18 ± 0.05 | ≤6.2 |
| Φ12 | ± 0.3 | 0.18 ± 0.05 | ≤6.95 |
Yog tias koj xav tau ntau qhov tshwjxeeb / tshwjxeeb, thov nias qhov no xa mus nug peb. Peb yuav teb koj hauv 24 xuab moos.
Cov ntawv pov thawj
Cov Ntaub Ntawv Qhia Tiag (Nyem Ntawm No)
