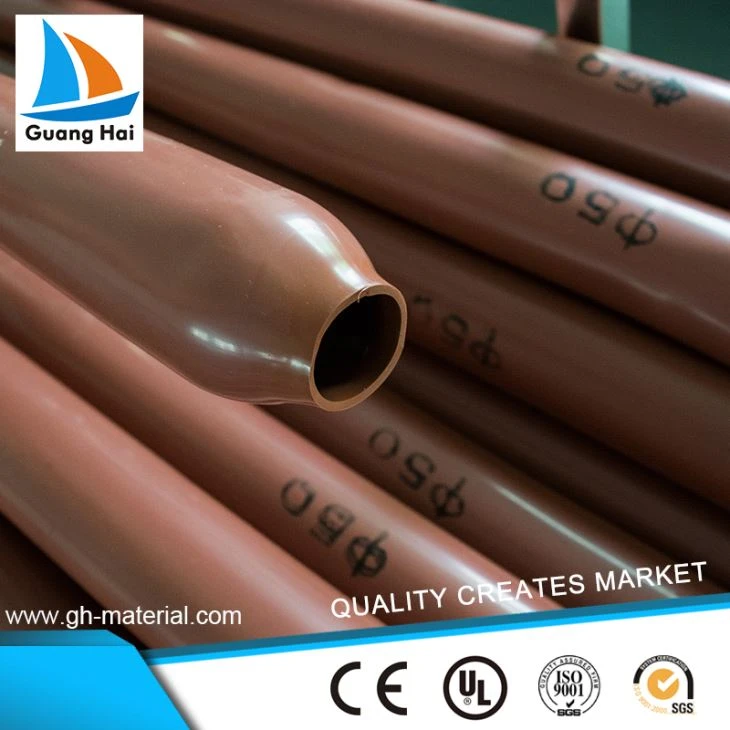

Saj zawg taub Silicone roj hmab High Temperature Ntsws Hose
Qhia tawm:
Silicone thaum tshav kub kub thawv tube tsis yog tsuas yog nrog kev ua haujlwm ntawm kev sib xyaw silicone tube, Kub siab ua hauj, kub siab ua hauj, mos thiab elastic, Tab sis kuj nrog thermal shrinkage kev kawm.Xob thiab alkali resistant, corona resistant, tiv thaiv mildew, nplaim retardant, Koj ua kom zoo, Siab loj, Eco-nyiam
Technical parameter
| Khoom Hom | Kub tshauv tub raj |
| Khoom siv | Cov roj hmab roj hmab |
| Tig nplaim qab | VW-1 |
| Cov Kub Ua Haujlwm | -60 ℃ -200 ℃ |
| Withstand Voltage | 600V |
| Ntev | Kho |
| Ntsws piv | 2: 1 |
| Ua haujlwm siab | 2-2.5pa |
| Ntshe kub | 80-125 ℃ |
| Pab | Khoom siv kho mob, Khoom siv hauv tsev, Motors |
| Qhov chaw ntawm Keeb Kwm | Guangdong, Suav teb (Mainland) |
Xav Paub Cov Ntxhais
| Silicone Thaum Tshav Kub Kub Shrink Tube Specification | ||||
| Tshwj xeeb | Ua ntej Shrink puab puab (mm) | Thickness (hli) | Tom qab Ntsws Sab Hauv Qhov Ncauj (hli) | Ntsa Thickness (hli) |
| Φ0.8 | ≥0.8 | 0.5 ± 0.1 | 0.5 | 0.7 ± 0.1 |
| Φ1.0 / 1.2 | ≥1 | 0.5 ± 0.1 | 0.6 | 0.7 ± 0.1 |
| Φ1.5 / 1.7 | ≥1.5 | 0.5 ± 0.1 | 0.8 | 0.7 ± 0.1 |
| Φ2.0 | ≥2 | 0.5 ± 0.1 | 1.2 | 0.7 ± 0.1 |
| Φ2.5 | ≥2.5 | 0.5 ± 0.1 | 1.5 | 0.7 ± 0.1 |
| Φ3.0 | ≥3 | 0.5 ± 0.1 | 1.8 | 0.7 ± 0.1 |
| Φ3.5 | ≥3.5 | 0.5 ± 0.1 | 2 | 0.7 ± 0.1 |
| Φ4.0 | ≥ 4 | 0.5 ± 0.1 | 2.5 | 0.7 ± 0.1 |
| Φ4.5 | ≥ 4.5 | 0.5 ± 0.1 | 2.8 | 0.7 ± 0.1 |
| Φ5.0 | ≥5 | 0.5 ± 0.1 | 3 | 0.7 ± 0.1 |
| Φ6.0 | ≥6 | 0.5 ± 0.1 | 3.8 | 0.7 ± 0.1 |
| Φ7.0 | ≥7 | 0.5 ± 0.1 | 4 | 0.7 ± 0.1 |
| Φ8.0 | ≥8 | 0.5 ± 0.1 | 4.8 | 0.7 ± 0.1 |
| Φ 9.0 | ≥9 | 0.5 ± 0.1 | 5 | 0.7 ± 0.1 |
| Φ10,0 | ≥10 | 0.8 ± 0.1 | 6.5 | 1.7 ± 0.1 |
| Φ11 | ≥11 | 1.0 ± 0.1 | 7 | 1.7 ± 0.1 |
| Φ12 | ≥12 | 1.0 ± 0.1 | 7.5 | 1.7 ± 0.1 |
| Φ 15 | ≥15 | 1.0 ± 0.1 | 9.5 | 1.7 ± 0.1 |
| Φ16 | ≥16 | 1.0 ± 0.1 | 10 | 1.7 ± 0.1 |
| Φ18 | ≥18 | 1.0 ± 0.1 | 11 | 1.7 ± 0.1 |
| Φ20 | ≥20 | 1.0 ± 0.1 | 13 | 1.7 ± 0.1 |
| Φ25 | ≥25 | 1.0 ± 0.1 | 15 | 1.7 ± 0.1 |
| Φ 30 | ≥30 | 1.0 ± 0.1 | 20 | 1.7 ± 0.1 |
| Φ35 | ≥35 | 1.0 ± 0.1 | 24 | 1.7 ± 0.1 |
| Φ40 | ≥40 | 1.0 ± 0.1 | 27 | 1.7 ± 0.1 |
| Φ50 | ≥ 48 | 1.0 ± 0.1 | 34 | 1.7 ± 0.1 |
| Φ60 | ≥58 | 1.5 ± 0.2 | 38 | 2.5 ± 0.2 |
| Φ70 | ≥ 68 | 1.5 ± 0.2 | 47 | 2.5 ± 0.2 |
| Φ80 | ≥78 | 1.5 ± 0.2 | 54 | 2.5 ± 0.2 |
| Φ90 | ≥88 | 1.5 ± 0.2 | 60 | 2.5 ± 0.2 |
| Φ100 | ≥98 | 1.5 ± 0.2 | 67 | 2.5 ± 0.2 |
| Φ110 | ≥108 | 1.5 ± 0.2 | 74 | 2.5 ± 0.2 |
Yog tias koj xav tau ntau qhov tshwjxeeb / tshwjxeeb, thov nias qhov no xa mus nug peb. Peb yuav teb koj hauv 24 xuab moos.
